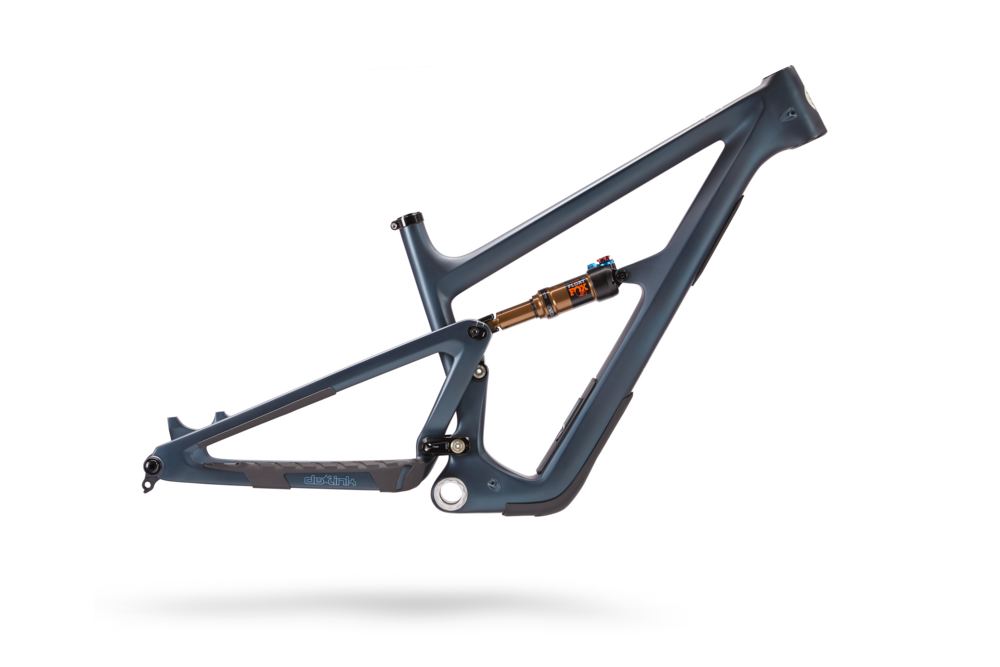

Ibis Ripley V5 Frameset - 2025
Details
Meet the Ripley, your new best friend for every trail adventure. The award-winning bike has been updated with more travel and slacker geometry, making it even more capable and fun. With playful performance and 130mm of ultra-efficient dw-link travel, the Ripley now features internal frame storage for all your stuff. Plus, with expanded size ranges, everyone gets the perfect fit. Whether you’re popping wheelies or conquering climbs, the Ripley is game.
Yes we ship! Please contact the store for details on ordering your new Ibis (info@calcoastbicycles.com).
Cal Coast Bicycles always has one of the largest inventories of Ibis bicycles. We offer all the Ibis kits and upgrades, and more! We can also customize any build, be sure to ask about our Industry Nine or Onyx hand-built wheels with matching stems.
| Frame Size | Small | Medium | Extra Medium | Large | X-Large |
|---|---|---|---|---|---|
| Seat Tube (mm) | 395 | 400 | 416 | 457 | 477 |
| Top Tube (mm) | 577 | 604 | 629 | 654 | 684 |
| Head Tube (mm) | 85 | 95 | 110 | 125 | 140 |
| Chainstay 29er (mm) | 436 | 436 | 437 | 440 | 442 |
| Chainstay MX (mm) | 433 | 433 | 434 | 436 | 438 |
| Seat Tube Angle | 77.4° | 76.9° | 76.9° | 77.4° | 77.9° |
| Saddle Height For Seat Tube Angle (mm) | 650 | 700 | 745 | 790 | 830 |
| Head Tube Angle | 64.9° | 64.9° | 64.9° | 64.9° | 64.9° |
| Wheelbase (mm) | 1187 | 1211 | 1241 | 1279 | 1321 |
| Stack (mm) | 613 | 619 | 629 | 640 | 650 |
| Reach (mm) | 440 | 460 | 483 | 511 | 545 |
| BB Drop 29er (mm) | 48 | 45 | 42 | 39 | 36 |
| BB Drop MX (mm) | 28 | 25 | 22 | 19 | 16 |
| BB Height (mm) | 326 | 329 | 332 | 335 | 338 |
| Standover (mm) | 680 | 721 | 744 | 759 | 772 |
| Recommended Seatpost Drop (mm) | 140 | 170 | 185 | 213 | 213 |
| Crank Length (mm) | 165 | 165 | 170 | 170 | 170 |
Specs
| Frame | Ripley V5 |
|---|---|
| Rear Shock | Fox Float Factory Series, DPS with EVOL, 210 x 52.5 |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Blue Hour / Small / 29-inch | 840345311481 | RLC1BUS00000025 |
| Blue Hour / Medium / 29-inch | 840345311498 | RLC2BUS00000025 |
| Blue Hour / X-Medium / 29-inch | 840345311504 | RLC3BUS00000025 |
| Blue Hour / Large / 29-inch | 840345311511 | RLC4BUS00000025 |
| Blue Hour / X-Large / 29-inch | 840345311528 | RLC5BUS00000025 |
| Green Flash / Small / 29-inch | 840345311146 | RLC1GNS00000025 |
| Green Flash / Medium / 29-inch | 840345311153 | RLC2GNS00000025 |
| Green Flash / X-Medium / 29-inch | 840345311160 | RLC3GNS00000025 |
| Green Flash / Large / 29-inch | 840345311177 | RLC4GNS00000025 |
| Green Flash / X-Large / 29-inch | 840345311184 | RLC5GNS00000025 |
